SuperCAT4 and T1 Transmitter Range User guide

Follow

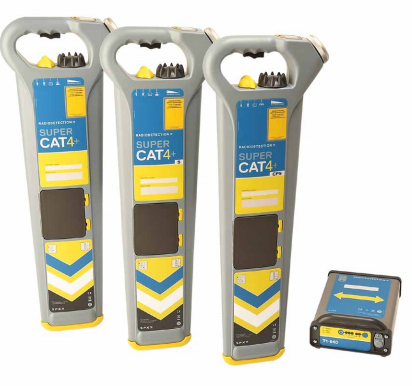

SuperCAT4

  • The SuperCAT4+ range of locators and transmitters uses a selection of passive, sonde and active frequencies designed to target specific buried assets. Using Radiodetection’s familiar C.A.T controls and display, minimal retraining is required to access these advanced capabilities.
  • For oil and gas pipes using a Cathodic Protection System, the CPS model can locate the rectified signal without needing an additional transmitter.
  • The S model locates a range of sonde frequencies that can be matched to the challenges of finding water and drain pipes. A lower frequency sonde is useful to trace deep cast-iron pipes. Higher frequency sondes can be easier to distinguish in an electronically noisy urban environment.
  • SuperCAT4+ can be used to locate a comprehensive set of active frequencies to support the detection and tracing of different cable types in varied environmental conditions.  Higher frequencies such as the 131kHz or 65kHz can be used to find well-insulated utilities such as twisted-pair telecom cables or insulated pipe joints.  For long range locating of lower resistance cables, such as power lines, lower frequency options are available.



A wide range of accessories are available to enhance the performance and to add extra functionality.

Click the link below or copy and paste it into your browser to download the latest version of the User guide.

https://www.radiodetection.com/sites/default/files/product-downloads/supercat4-ug110int-01-web.pdf?_buster=ikM8mdKh



Documents may not be copied, reproduced, transmitted, modified or used, in whole or in part, without the prior written consent of Radiodetection Ltd.Note that Operation Manuals and all their contents are subject to change. Radiodetection products are under continuous development. Radiodetection Ltd reserves the right to modify the product without notice and some product changes may have taken place after this user manual was published.

Contact your local Radiodetection office or dealer, or visit www.radiodetection.com for the latest products and service information.
