About

The C.A.T Manager program options allow access to various options for the PC installed software. It is accessed via the Settings Spanner icon in the top right hand side of the screen and selecting ‘Options’.

Screen

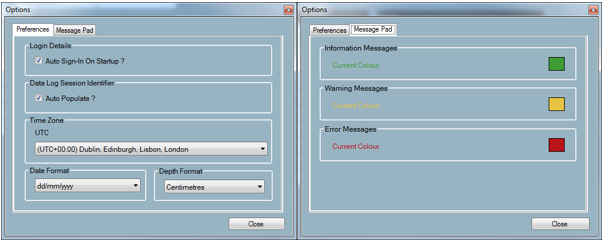

Options

You can customise the colour of text in the Message Pad, by clicking on the relevant colour box.

Auto Sign-in On Startup Automatically logs into this account when the program is opened.

Data Log Session Identifier Automatically populates the Job Reference field with daily session IDs

Time Zone Date stored in UTC format but can be displayed in any time zone

Date Format Select date format for display

Depth Format Choose display depth format

Information Messages Change font colour of Information messages in the message window.

Warning Messages Change font colour of Warning messages in the message window.

Error Messages Change font colour of Error messages in the message window.

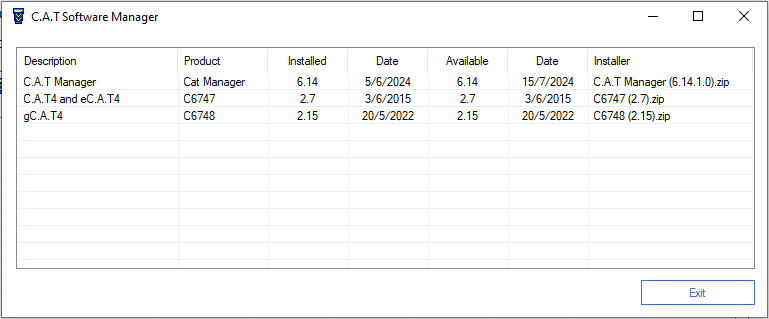

Check for updates

Provides a link to the C.A.T Software Manager

C.A.T USB Help Wizard

An interactive tool for diagnosis of USB connection issues.

When opening the 'C.A.T USB Help Wizard' for the first time you will be presented with the EULA.

Set current language

English.

Online Manual

Provides a link to online version of the Operation Manual for the product.

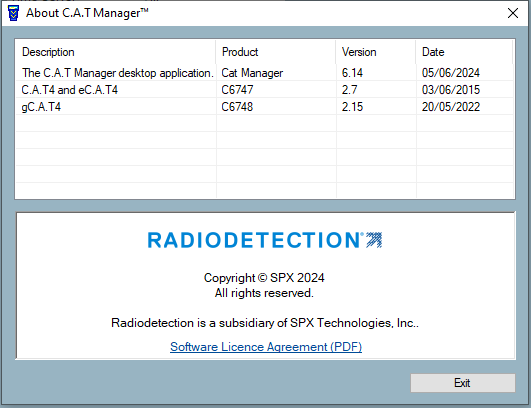

About C.A.T Manager

Provides information about the installed software and a link to the Software License Agreement.
