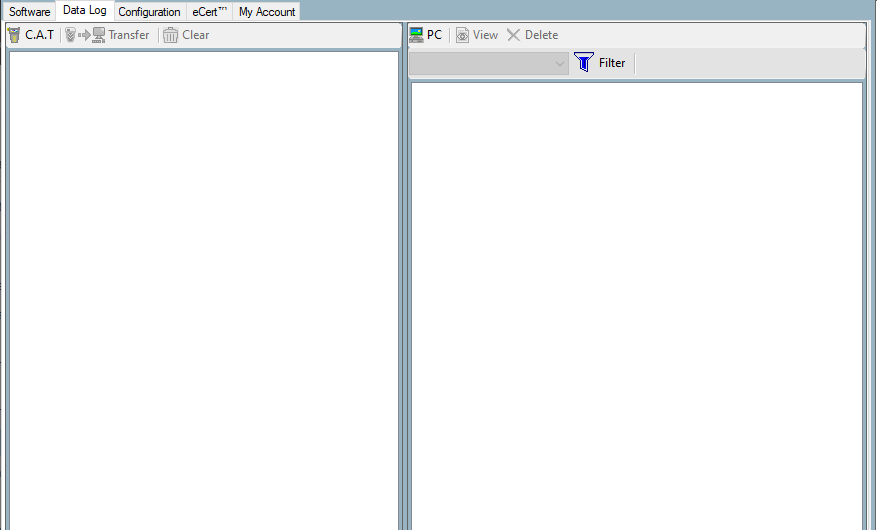

The Data Log Screen

This screen allows you to upload the data logs from your C.A.T4 and store them on your PC.

The left hand window shows the list of logs that exist on the C.A.T4, and which are available for transfer to the P.C. The right hand window shows all the logs which have been transferred to the PC.



C.A.T Window Commands

Transfer

Transfers the list of displayed data logs from the datalogging C.A.T4 to the PC.

Clear

Clears the data logs on a datalogging C.A.T4

PC Windows Commands

Select a log in the PC Window in order to view it:

View

View the selected data log(s) in the C.A.T Data Collector.

Delete

Deletes the items currently selected in the PC Window from the PC.

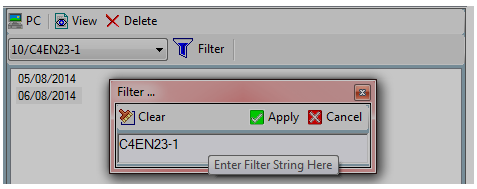

Filter on Serial Numbers

Operators can also filter serial numbers in the PC window by typing all or part of a serial number in the search box. Only those Serial Numbers which match will appear in the data window.

NOTE: When you select the Transfer options, the entire serial number of the connected unit appears in this window.

How to Transfer All Available Data Logs

Perform the following steps to upload data logs:

  1. Run the C.A.T Manager program
  2. Connect a datalogging C.A.T4 via USB Cable
  3. Select the Data Log tab
  4. Press Transfer Button (alternatively select all then ‘drag and drop’)

How to Transfer Specific Data Logs

Perform the following steps to upload data logs:

  1. Run the C.A.T Manager program
  2. Connect a datalogging C.A.T4 via USB Cable
  3. Select the Data Log tab
  4. Select the logs of interest in the C.A.T window
  5. Press Transfer Button (alternatively select then ‘drag and drop’)

Enabling the Clear Function

To provide enhanced security of the locate data on a C.A.T4 this command will only become available to a specific user account if that account has been enhanced to enable this feature. To do this you will need to contact Radiodetection customer support with your C.A.T Manager account details, and accept the relevant terms and conditions.

How to Clear Data Logs From a datalogging C.A.T4

Perform the following steps to clear data logs:

  1. Run the C.A.T Manager application
  2. Sign In
  3. Connect a datalogging C.A.T4
  4. Select the Data Log tab
  5. Press the Clear button



NOTE: Before attempting to clear data logs, you will need to contact Radiodetection Customer Support to have this feature enabled.
