First Use



Power options

RD8200SG locators are shipped configured to use Li-Ion battery packs as a standard.

The transmitter can also be powered using good quality rechargeable D-cell NiMH batteries or the optional accessory Li-Ion rechargeable battery packs. It’s important to set the correct battery chemistry in the locator to optimize performance,.

Transmitters can also be powered using optional accessory mains or vehicle power adapters.



On the Transmitter:

To fit the D-cell batteries in the transmitter, unlatch the accessory tray. The battery compartment is located underneath the transmitter body. Use the turnkey to unlatch the battery compartment. Insert eight D-Cell Alkaline or NiMH batteries.

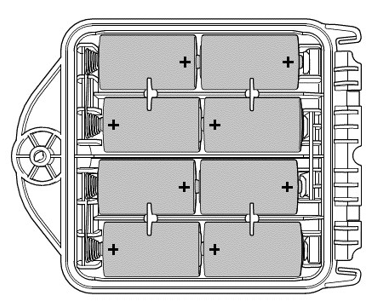

d-cell battery tray

D-cell battery trays



Battery status

The locator and transmitter displays provide a battery level indicator. battery status iconWhen battery replacement is necessary, the display shows a flashing battery icon.

NOTE: The locator volume may automatically lower if set to level 5 or 4, when using alkaline batteries and if their charge is low. When this happens, the display will shortly flash the ‘LOW BATT’ warning and show the reduced volume level.

NOTE: Prolonged use of maximum volume and vibration alerts on the locator will reduce battery life.

NOTE: Prolonged use of high power output on the transmitter will reduce battery life.

Removing / fitting battery packs

Locator battery pack:

  1. Open the battery compartment using the release catch
  2. If using a Li-Ion battery pack un-plug the lead connector
  3. Lift the accessory cover slightly and press the battery retaining latch inwards

press the retaining latch

Press the retaining latch inwards



4. Rotate the battery pack away and up from the latch

5. Repeat on the other side to release the battery pack completely then lift the battery pack away

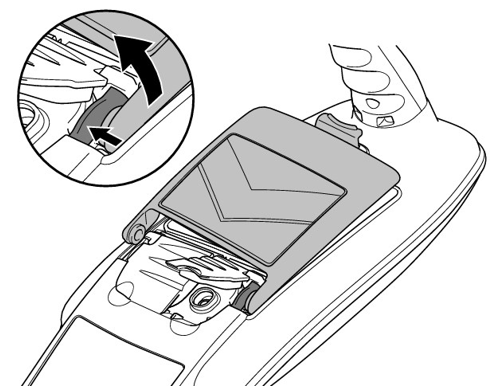

repeat press of  retaining latch

Repeat then lift the battery pack away



To fit a new battery, lift both accessory covers slightly, then gently push the replacement pack into place until it clicks on both sides, then close the battery pack.

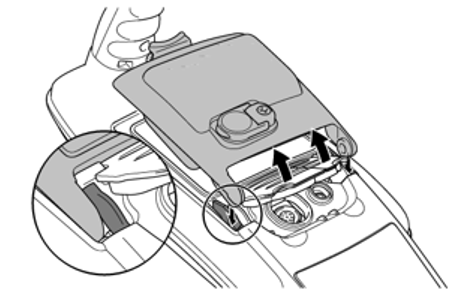

fitting new battery pack.png

Installing a new battery pack



If using the Li-ion battery pack, plug the lead into the battery connector.

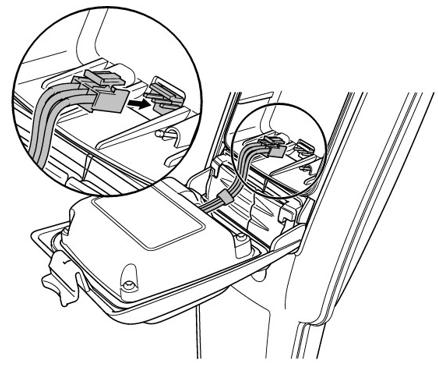

connecting the battery pack



NOTE: Fully charge your lithium-ion battery pack before its first use.

Transmitter battery pack:

  1. Unlatch then remove the accessory tray
  2. Turn the release catch, then open the battery compartment
  3. Release the retaining catch by pressing gently, then lift the battery pack away
  4. Line up the battery pack clips with the corresponding recesses on the transmitter body and press into place.
  5. Close the battery pack, turn the retaining latch and replace the accessory tray

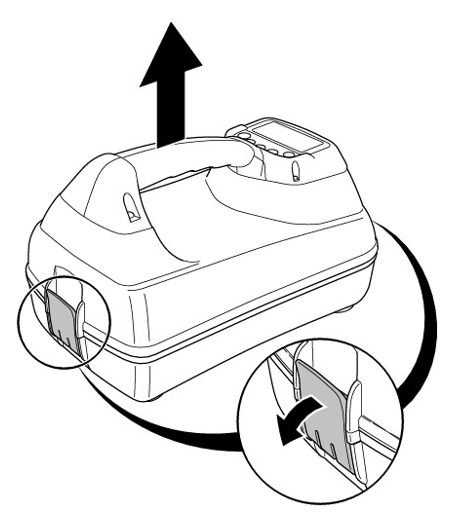

retaining latch

Release then remove the accessory tray

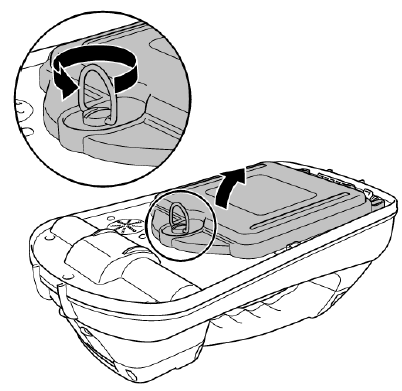

turnkey

Opening the battery compartment

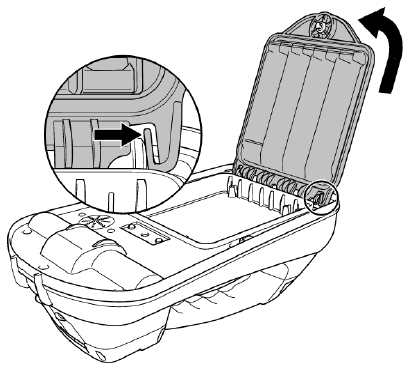

lifting away

Press the release catch and lift the battery pack away

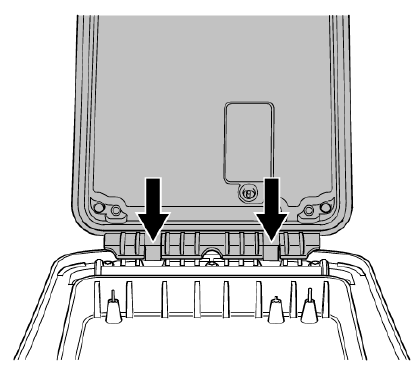

lining up the batery pack

Line up the battery pack and press into position



Charging the lithium ion packs

WARNING! Only use charging equipment provided by Radiodetection. The use of alternative chargers may cause a safety hazard and/or reduce the life of the battery.

CAUTION: Do not let your battery completely discharge as this may reduce its life or damage it permanently. If you are not using your equipment for a long period do charge them at least once a month.

WARNING! Batteries can get hot after prolonged use at full output power. Take care while replacing or handling batteries.

WARNING! Do not tamper with, or attempt to disassemble the battery packs.

CAUTION: If battery failure is suspected or if the battery shows any sign of discoloration / physical damage return the entire unit to an authorized repair center for investigation and repair. Local, national or IATA transport regulations may restrict the shipment of faulty batteries. Check with your courier for restrictions and best practice guidelines. Your local Radiodetection representative will be able to direct you to our authorized repair centers.

You can re-charge your batteries using the Radiodetection mains or automotive chargers.

NOTE: The charging temperature range is 0 to 45 °C, 32 to 113°F. Do not attempt to recharge your batteries outside this temperature range

WARNING! do not heat the rechargeable battery pack above 60°C (140°F) as this will damage the battery's thermal fuses.

Locator Li-Ion battery pack

To recharge the locator battery pack, connect the battery charger to the DC input connector on the front of the battery pack.

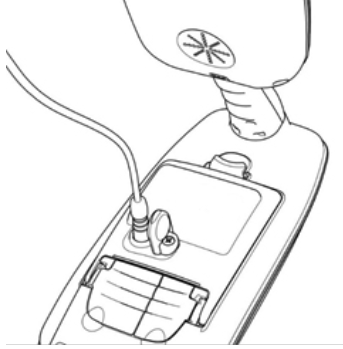

charging the locator.png

Charging the locator Li-ion battery pack



Transmitter Li-Ion battery pack

To recharge the battery pack, remove the pack from the transmitter and connect the transmitter battery charger.

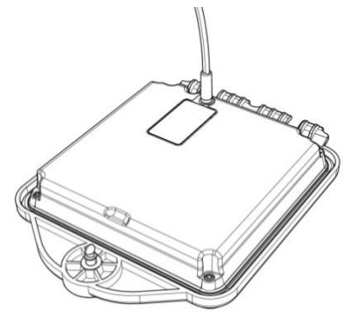

charging the transmitter

Charging the transmitter Li-ion battery pack





For more information about recharging batteries refer to the instructions that came with your charger.
