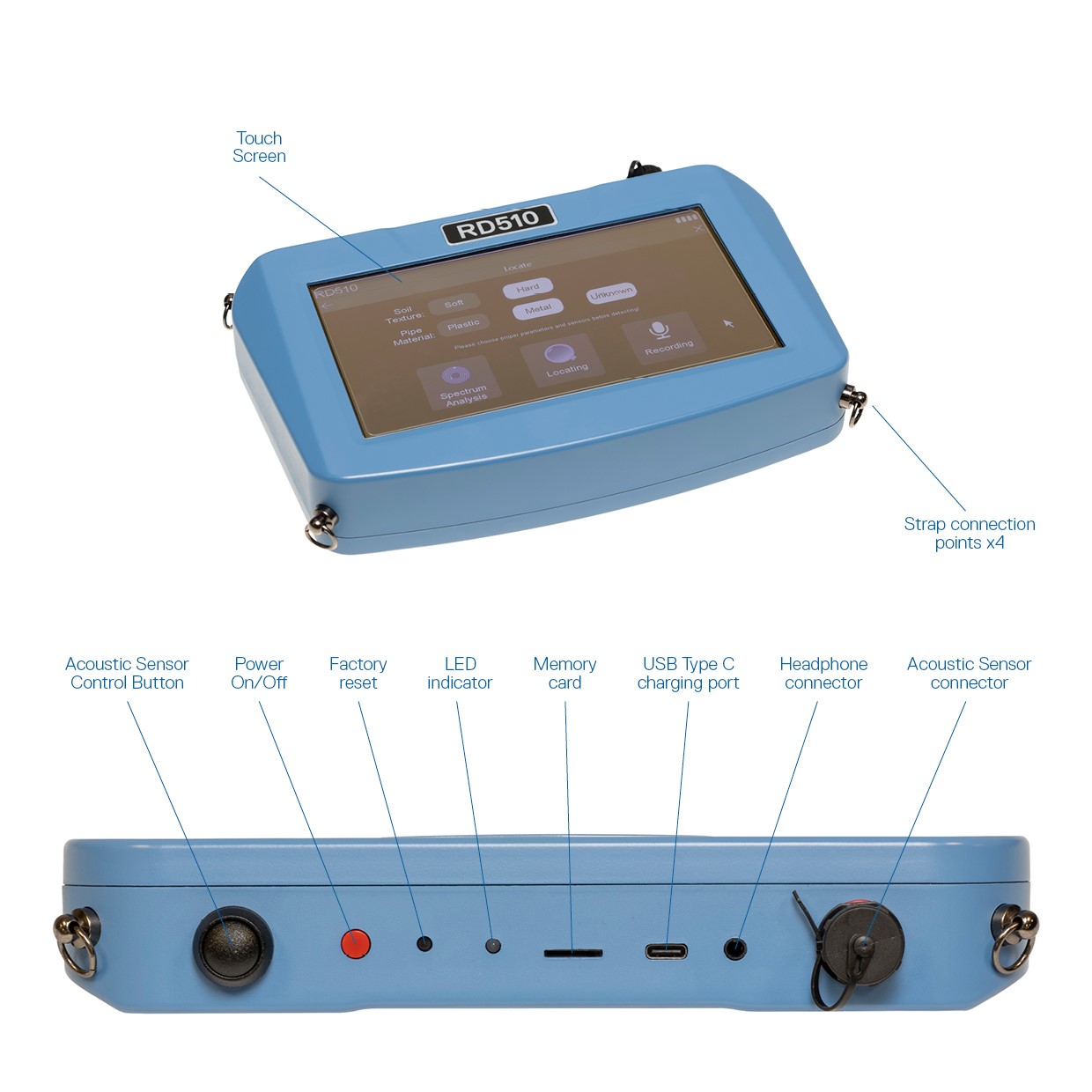

Charging
Charging is over USB Type C, and the LED will display Red
LED Behavior

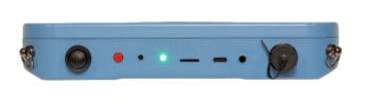

Green – Unit is ON

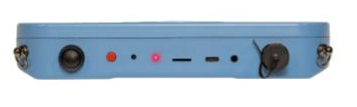

Red – Unit charging

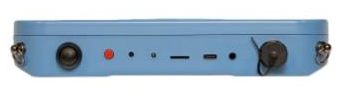

OFF – Off or Unit fully charged (if plugged in)

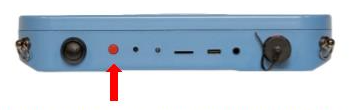

Power control
Long press to the power button to turn the unit On or Off
Reset
If the unit locks this can be reset by pressing the reset button with a pin. The unit will turn off.
Sensor Input
Unscrew the connector cap and screw in the sensor plug. The plug can only be inserted in a set position so line up the white orientations points on both the connector and the socket.
CAUTION: The connector and plug are keyed. Do not forced the plug in but gently rotate this until it mates with the connector

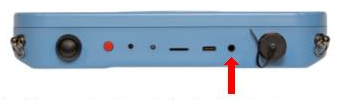

Headphone output
Headphones output is a standard audio output jack connector. Insert here the audio lead.
WARNING: Take care to check the volume level before wearing the headphones.
Boot screen

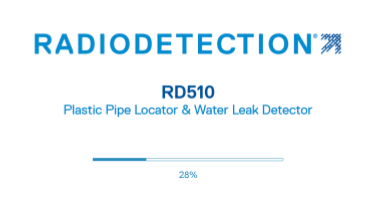

RD510 boot screen
The boot screen is displayed during power up. There is a progress bar at the bottom of the screen.
Home page

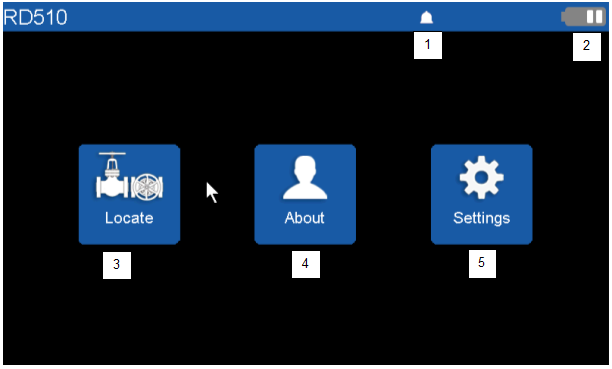

RD510 Display Home Page
- Sensor icon – visible only when the acoustic sensor is connected
- Battery level
- Locate operation menu
- About screen
- Settings
Touch Screen / Navigation

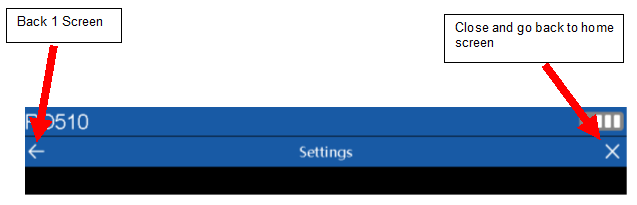

RD510 Display Navigation icons
The RD510 Display Unit is a touch screen device:
- Use your finger to select items, or to slide.
- Tap once to enter a menu or start a function.
- When in a sub menu/screen you can use the 2 icons in the navigation bar.
About

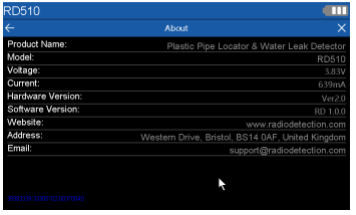

RD510 Display About screen
This screen provides general information about your Display Unit and contact information for Radiodetection.
Settings

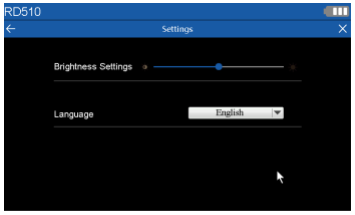

RD510 Display About screen
This screen gives access:
- Brightness Setting: This is a slider bar. It will reset to the mid-point (default) at reset.
- Language: Only English is supported
