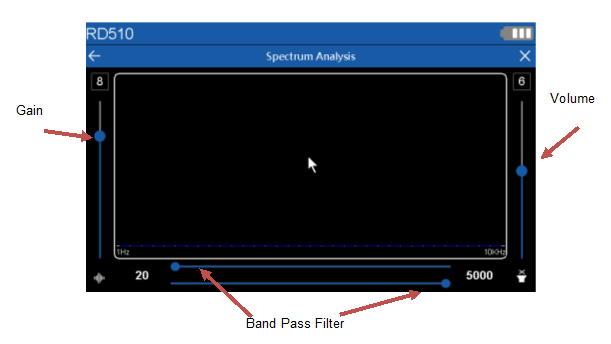

When the sensor is connected and enabled, this Screen provides a real time frequency analysis of the audio signal received.
To enable the acoustic sensor:

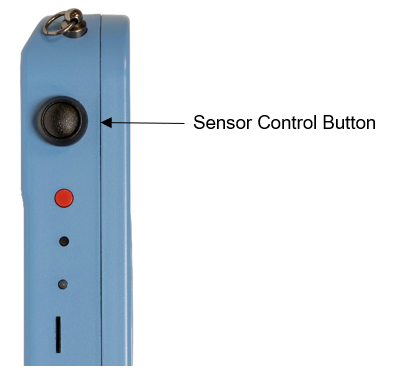

- Enable the Acoustic Sensor input by a single press of the Sensor Control button.
There are 3 controls available:
Volume: Use this to control the sound level in your headphones.
WARNING: Excessive volume levels may cause hearing damage.
Gain: Use this to increase / decrease the sensitivity.
Band Pass Filter: use the low and high band frequencies to filter out unwanted noise.
