Setting up the RD510 Water Pipe Locator and Leak Detector

Follow Avatar Alberto Iaccarino
Updated : Created :
In this article

Please follow the steps below:

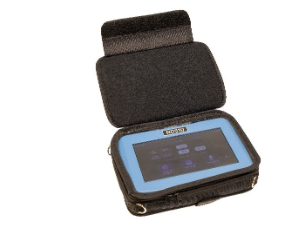

1. Ensure the screen is in its soft carry case.



2. Connect the neck strap to the case.

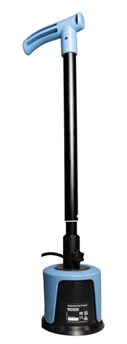

3. Connect the Acoustic sensor to the telescopic handle (twist to lock and unlock) and adjust accordingly.



4. In case of soft surface operation, connect the soft ground adaptor and spikes for soft surfaces.

5. Connect the ground microphone sensor to the display unit.



6. Connect the audio lead to the control unit and headphones.

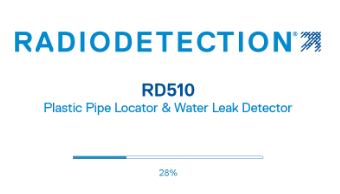

7. Power ON the control unit – The boot screen will be shown momentarily on the display.

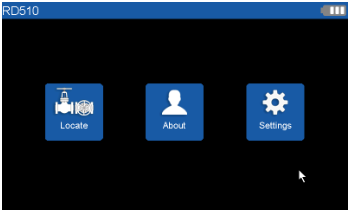

8. Select Locate

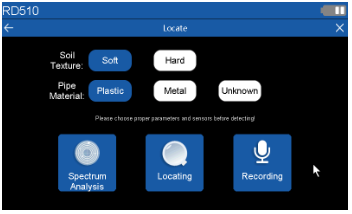

9. Set the Locate Parameters

Choose according to the Soil Texture and Pipe Material.

  • Soil Texture: Soft or Hard
  • Pipe Material: Plastic, Metal or Unknown



NOTE: The selected parameters cannot be modified after entering Spectrum Analysis or Locating mode.
