Genny: Live Plug Connector (LPC)

Follow Avatar Anthony Caplin
Updated : Created :
In this article

Live Plug Connector (LPC)




This accessory is used to easily apply a Genny signal to a street distribution cable using a standard mains socket. It is available with either a UK or EU style mains plug or a ROW style that comes without a plug fitted. Maximum operating voltage 254Vrms and CAT II rated.

The Live Plug Connector applies the Genny signal to a live domestic power socket and, via the domestic wiring system to the service and supply cable in the street.

Part No: 10/GG1540-LPC, 10/GG1540-LPC-EUR, 10/GG1540-LPC-ROW

WARNING!: Do not use Direct Connect leads to connect to live cables. Use the Radiodetection Genny Live Plug Connector or Live Cable Connector. Failure to do so may result in injury or equipment damage.

WARNING!: Connection to live power cables should only be undertaken by qualified personnel.

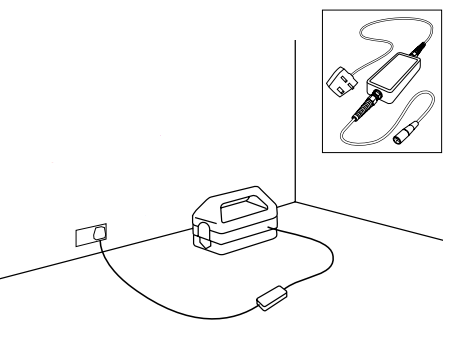

The Live Plug Connector applies the Genny signal to a live domestic power socket and, via the domestic wiring system, to the service and supply cable in the street.

Connect the Live Cable Connector to the Genny4 accessory socket and the mains power socket, then switch the Genny4 and the power socket on.

NOTE: The Live Plug Connector provides protection to 250V AC.
