Create a new project using PointMan® for iOS
1) Sign In to the PointMan app and enter the Menu (top left).
2) Select Open Project
3) Click on New in the bottom right corner.

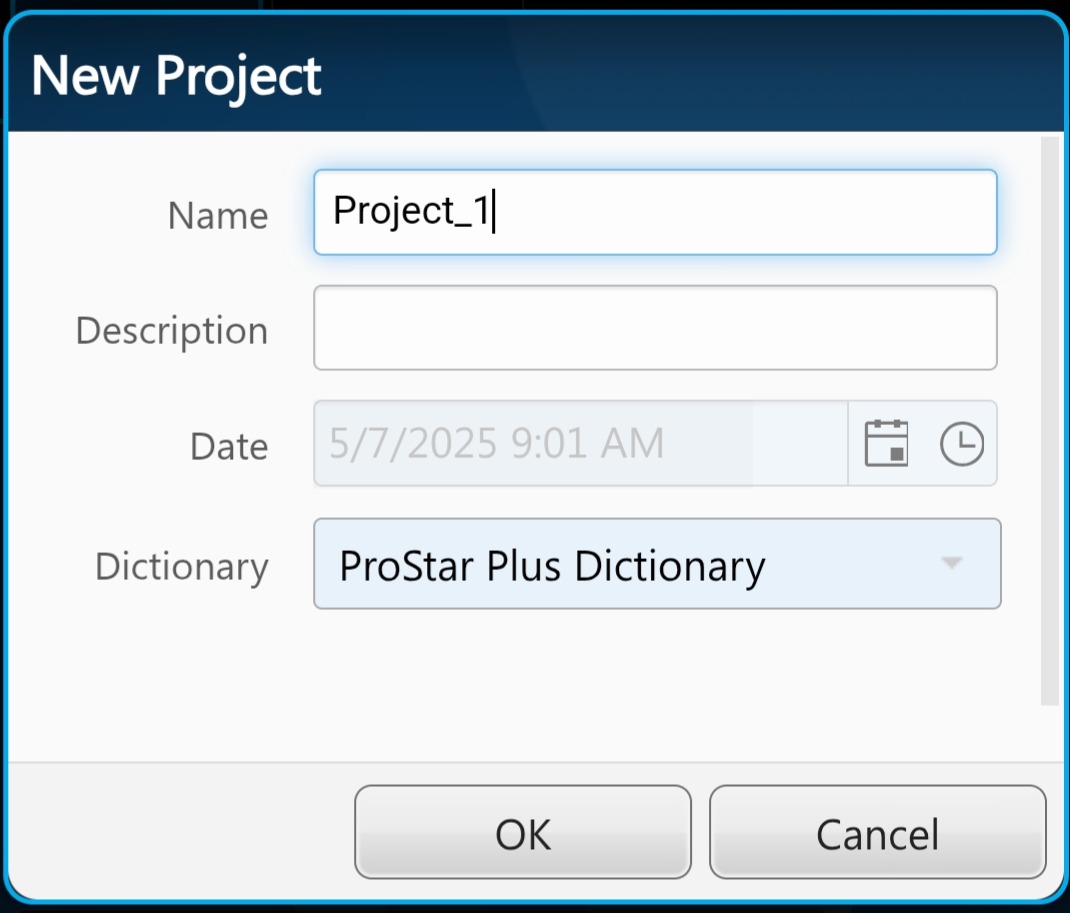

4) Type "Project name" and click OK.
5) "Double click" on the Project to open it. Allow a few moments for the project to be generated.

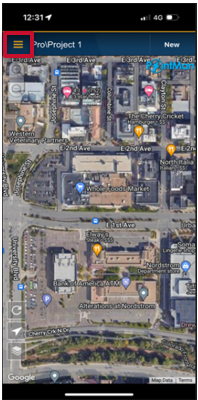

6) When the project has been successfully created you should see a map indicating your location.
Next. Select the Menu to confirm the pairing to the correct GNSS and locator for the project.
7) Enter Settings from the menu.
8) Under Devices, click on the drop down under GPS and select Radiodetection BTLE.
Select RTKLE-MRXSG-XXXX from the drop down underneath.
9) Click on the drop down under Locator and select Radiodetection BTLE.
Select LE-MRXSG-XXXX from the drop down underneath.
10) Check the numbers match the serial number printed on the label of your MRX SG Marker locator.
Once the correct devices has been selected (as illustrated above), you are ready to start your survey.
Create a new project using PointMan® for Android™
1) Sign In to the PointMan app and enter the Menu (top left).
2) Select Open Project.
3) Click on New in the bottom right corner.
4) Type "Project name" and click OK.
5) "Double click" on the Project to open it. Allow a few moments for the project to be generated.
6) When the project has been successfully created you should see a map indicating your location.
Next. Select the Menu to confirm the pairing to the correct GNSS and locator for the project.
7) Enter Settings from the menu.

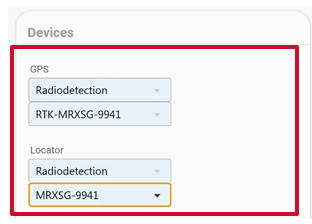

8) In the Settings menu scroll to Devices, click on the drop down under GPS and select Radiodetection.
Select RTK-MRXSG-XXXX from the drop down underneath.
9) Click on the drop down under Locator and select Radiodetection.
Select MRXSG-XXXX from the drop down underneath.
10) Check the numbers match the serial number printed on the label of your MRX SG Marker locator.
Once the correct devices has been selected (as illustrated above), you are ready to start your survey.
