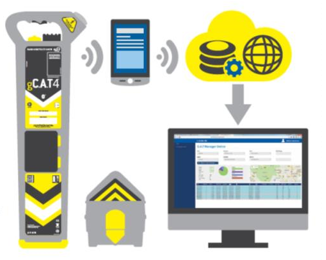

A quick visual guide for field operators to upload their scan data to the cloud based Online C.A.T Manager system using the C.A.T Manager phone app.
![]() |
Pairing a gCAT4 to your phone or device
|
![]() |
Select BLUETOOTH SETTINGS on the App C.A.T locator screen |
![]() |
Pull the trigger on the gC.A.T4 to switch the unit on |
![]() |

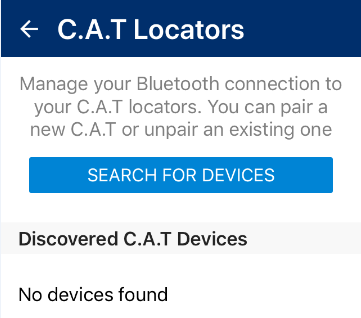

Select SEARCH FOR DEVICES on the App C.A.T locator screen |
![]() |

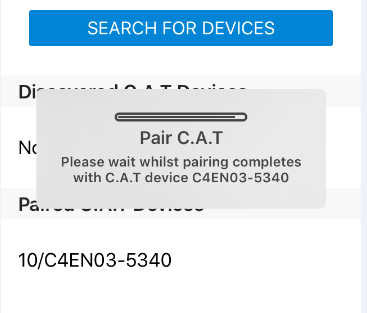

When the serial number your gC.A.T4 appears on the screen select it to begin pairing |
![]() |
The screen on the C.A.T will display a Bluetooth icon during the pairing process |
![]() |

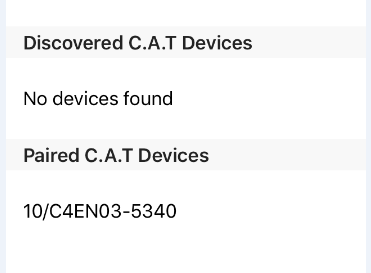

You should see under Paired C.A.T Devices your C.A.T serial number
|
Your gC.A.T4 is now ready to use |
![]() |
To send your scan/survey data up to the portal |
![]() |
Pull the Trigger on the C.A.T |
![]() |

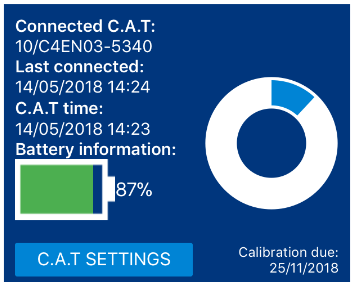

The data circle icon begins to feel up to indicate a connection as been made. The C.A.T serial number & battery status are displayed and the scan data logs are transferred across to your device |
![]() |

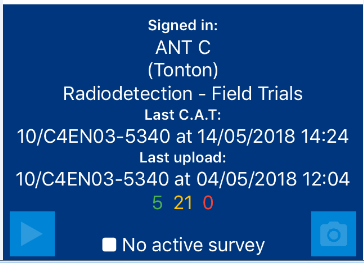

The data logs are then sent up to the portal; Green = a successful upload Orange = data logs that are pending Red = failure to upload |
Note: If you are sharing a gC.A.T4 with other operators, make sure that all your scans have been correctly uploaded to the server against your account, before handing the gC.A.T4 to the next operator.
|
In the event of an error occurring send your Log file to Radiodetection Support to investigate, following the steps below. |
![]() |
Select the 'Menu' icon on the top left corner of the CAT Manager app main screen
|
![]() |
Select the 'About' option
|
![]() |
Select 'SEND LOG FILE' This will be emailed to the radiodetection tech support for diagnosis
|

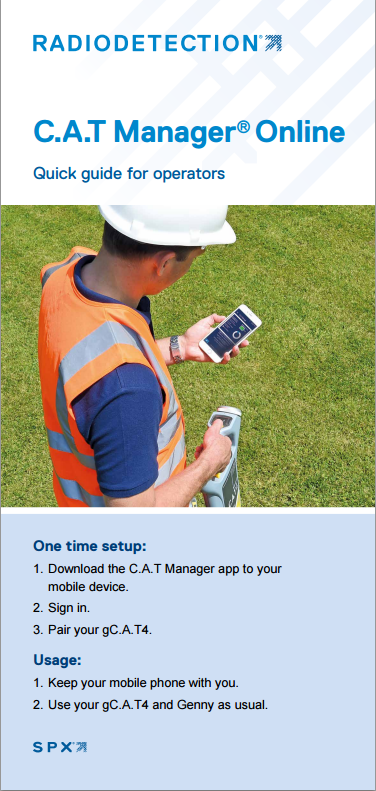

A PDF copy of the C.A.T Manager Online - 'Quick guide for Operators' is available for download.
