Cable and Pipe Locator Range
Tracing buried pipes and cables, whether to locate faults or to avoid utilities during excavation work, can present major difficulties. This can be made even worse in cases where a pipe has rubber seals, insulators or even gaps between sections.
These problems, if not overcome, can result in costly repairs, delays and in some instances personal injury.
The RD5100 Series has been designed to address these issues, specifically addressing the concerns and challenges of users such as those in the Water and Gas Industries locating buried pipes and cables.

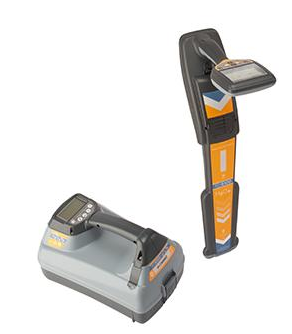

A precision locating kit offering a suite of active, passive and sonde frequencies specifically targeting the needs of Water Industry users. Guidance mode helps you trace your target with user-friendly visual and audio guides, while iLOC™ allows you to control the transmitter remotely using the locator.

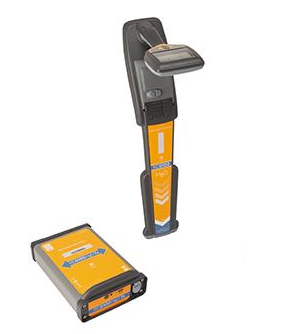

A precision locator/transmitter pair offering 83kHz Guidance mode and Power mode. 83kHz is very well suited to uses such as disjointed pipes and cables, as well as plastic pipes with tracer wire. The signal can be applied either by direct connection, by clamp or by induction, which is also an excellent way of lighting up all nearby conductors for blind locates.

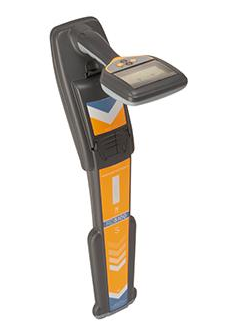

A precision locator of 3 different Sonde frequencies for tracing all types of non-metallic pipe and for following the progress of a sonde-enabled pipeline camera system, such as Pearpoint’s Inspection Systems. Upgrade with up to 4 active line locating frequencies later as your needs develop.
A wide range of accessories are available to enhance the performance and to add extra functionality.
Click the link below or copy and paste it into your browser to download the latest the Brochure, Quick Start User guides and Information sheet.
Documents may not be copied, reproduced, transmitted, modified or used, in whole or in part, without the prior written consent of Radiodetection Ltd.Note that Operation Manuals and all their contents are subject to change. Radiodetection products are under continuous development. Radiodetection Ltd reserves the right to modify the product without notice and some product changes may have taken place after this user manual was published.
Contact your local Radiodetection office or dealer, or visit www.radiodetection.com for the latest products and service information.
