A range of accessories for Radiodetection's Cable Avoidance Tool system
C.A.T Accessories

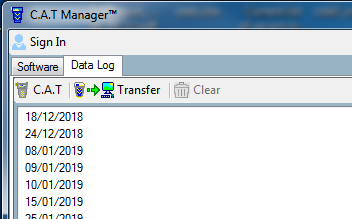

C.A.T Manager™
This Windows PC software package allows C.A.T4 users to upgrade software, upload data logs (eC.A.T4 and gC.A.T4), retrieve calibration certificates and carry out eCert using USB link to a PC. C.A.T Manager can disable or enable C.A.T4 features such as depth estimation and warnings. User editable fields enable plant/fleet codes and other details to be stored on eC.A.T4 units, simplifying records and traceability. C.A.T Manager is available as a free download from the Radiodetection website or alternatively can be purchased on a CD.
Part No: 97/CATMANAGER
Download: catmanager_radiodetection

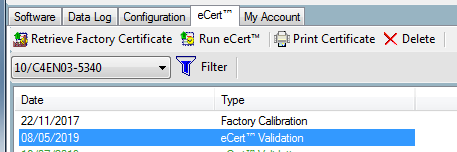

eCert™ Calibration Credit
eCert™ is part of C.A.T Manager software application and allows users to confirm and extend the calibration of a C.A.T4 remotely and extend the calibration of a C.A.T4 remotely using a USB link to a PC running C.A.T Manager. A successful eCert will generate a certificate of calibration which may be viewed or printed.
Part No: 10/ECERT
Genny Accessories

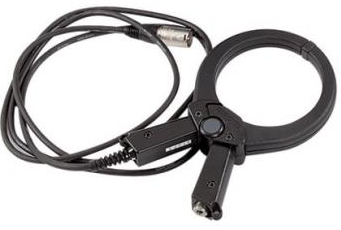

Genny Clamp
This clamp is used to apply a Genny signal to a specific cable or pipe. This is particularly useful where direct connection is not possible, or even on live cables when these cannot be de-energised. Available in 2" (50mm), 4" (100mm), 5" (130mm), and 8.5" (215mm) diameters.
Part No: 10/GENNY-CLAMP-XX (XX = 2, 50, 4, 100, 5, 130, 8.5, 215)
https://support.radiodetection.com/hc/en-gb/articles/115005764626-C-A-T4-and-Genny4-Locating-Methods-2-
Extension Rod
The 25" (630mm) length, non-conductive, nylon extension rod is used to extend the reach of the Genny clamp. Multiple rods can be connected together to extend the reach further.
Part No: 10/TX-CLAMP-EXTROD

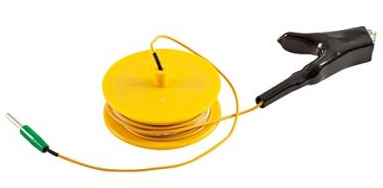

Earth Extension Lead
This 33' (10m) lead, wound on a convenient spool, is used to extend the direct connection earth return connector, when a local earth point cannot be reached or is not suitable.
Part No: 10/TX-EARTH-LEAD

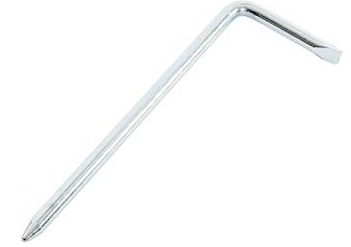

Earth Stake
This metal stake is inserted into the ground to provide an earth return path for the Genny signal.
Part No: 04/AC1453N1
Neodymium Magnet
This high strength magnet can be attached to metallic pipes, street furniture, etc., to provide a convenient connection point for the direct connect lead signal connector.
Part No: 26/F4ME16M4

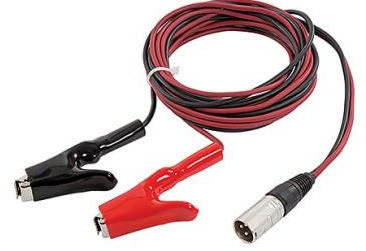

Direct Connect Lead
This is used for applying a Genny signal directly on to utilities.
https://support.radiodetection.com/hc/en-gb/articles/115005755026-C-A-T4-and-Genny4-Locating-Methods
Part No: 17/GG1376E5
WARNING!: Connection to a power cable sheath should only be undertaken by qualified personnel.

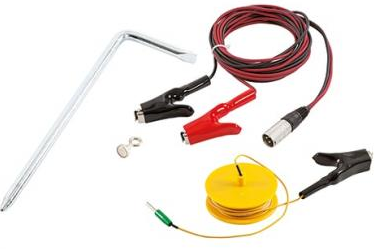

Genny Connection Kit
This kit includes the most common Genny connection accessories: direct connection lead, earth extension lead, earth stake and high-strength neodymium magnet.
https://support.radiodetection.com/hc/en-gb/articles/115005755026-C-A-T4-and-Genny4-Locating-Methods
Part No: 10/GENNY-KIT
WARNING!: Connection to a power cable sheath should only be undertaken by qualified personnel.
Live Plug Connector (LPC)
This accessory is used to easily apply a Genny signal to a street distribution cable using a standard mains socket. It is available with either a UK or EU style mains plug or a ROW style that comes without a plug fitted. Maximum operating voltage 254Vrms and CAT II rated.
The Live Plug Connector applies the Genny signal to a live domestic power socket and, via the domestic wiring system to the service and supply cable in the street.
Part No: 10/GG1540-LPC, 10/GG1540-LPC-EUR, 10/GG1540-LPC-ROW
WARNING!: Do not use Direct Connect leads to connect to live cables. Use the Radiodetection Genny Live Plug Connector or Live Cable Connector. Failure to do so may result in injury or equipment damage.
WARNING!: Connection to live power cables should only be undertaken by qualified personnel.
Live Cable Connector (LCC)
This accessory is used to apply the Genny signal to live cables. The Live Cable Connector may only be used by suitably qualified personnel. Maximum operating 440Vrms and CAT III rated.
Connect the Live Cable Connector to the Genny4 accessory socket and the mains power socket, then switch the Genny4 and the power socket on.
Part No: 10/GENNY-LCC
WARNING!: Do not use Direct Connect leads to connect to live cables. Use the Radiodetection Genny Live Plug Connector or Live Cable Connector. Failure to do so may result in injury or equipment damage.
WARNING!: Connection to live power cables should only be undertaken by qualified personnel.
Transport Accessories

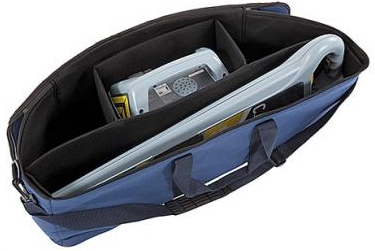

Soft Carry Bag
This soft bag can hold a C.A.T and Genny and their accessories.
Part No: 10/CAT/GEN2U
