Phone/Tablet mount

Follow Avatar Anthony Caplin
Updated : Created :
In this article

When using a mobile device running a compatible application, such as RD Map for Android, you can use the Phone or Tablet mount to conveniently hold your device next to the locator and have immediate visual feedback on the survey measurement points you are marking.



mount bracket.pngphone tablet holder.png

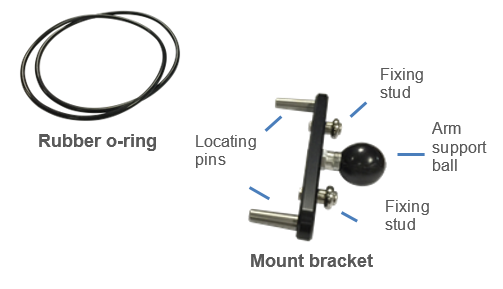

Phone/tablet mount kit

To use the mobile device mount:

bracket positioning.png

Bracket positioning

1. Insert the mount bracket locating pins in the mounting holes at the back of the locator screen.

2. Secure the rubber o-ring around either of the 2 fixing studs and loop it around the locator handle.

bracket secured.png

Bracket secured

3. Stretch the other end of the rubber o-ring over the remaining fixing stud.

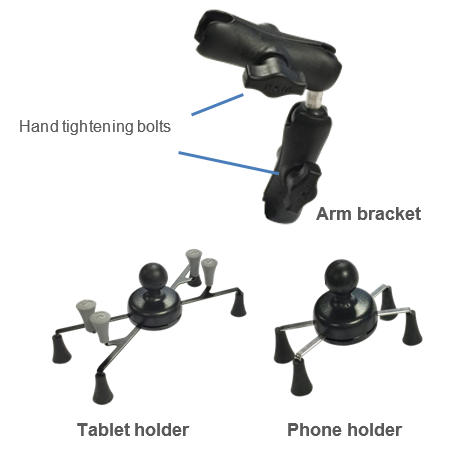

4. Use the hand tightening bolts to loosen up the arm brackets and to attach it over the bracket’s arm support ball.

5. Add the phone or tablet holder.

6. Tighten the hand tightening bolts to secure the mount.

7. Position the phone or tablet to the front of the locator.

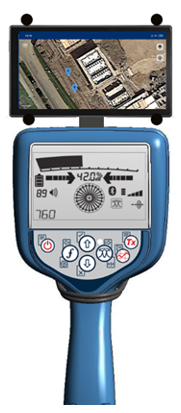

correct positioning.png

Phone/tablet correct position

WARNING: Mobile phones or tablets may interfere with the locator’s performance if positioned not in front of the locator.

Some mobile phone or tablets may affect the locator’s performance, even if used in the correct position. This may be obvious in situation where the locator is trying to detect a very small signal and it manifests itself by an unstable signal shown on the bargraph and/or depth or current measurement.

If in doubt remove the mobile phone or tablet to verify if these are affecting the behavior of the locator.

No cables, such as power leads or headphones, must be connected to the phone or tablet when used with the mount kit.
