Troubleshooting - Locator device

Follow Avatar Anthony Caplin
Updated : Created :
In this article

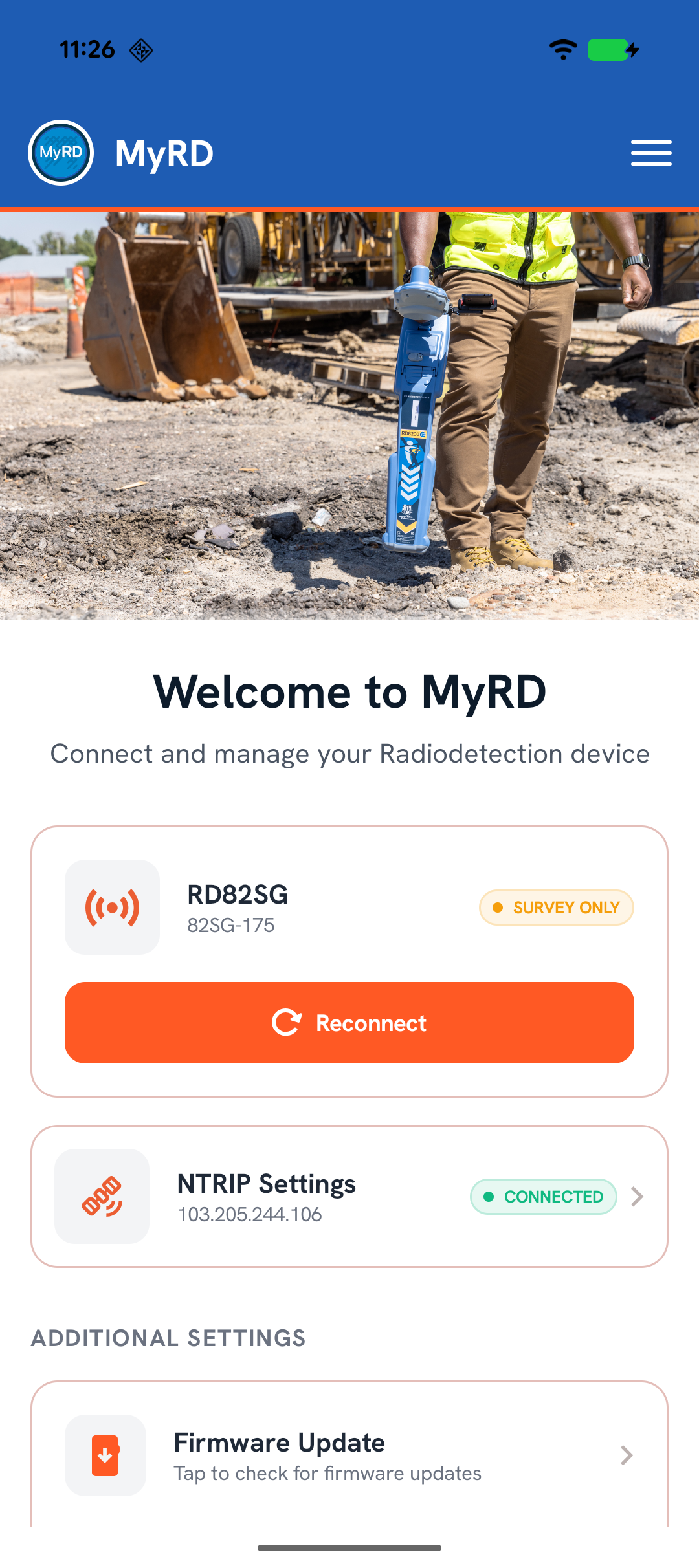

If the device is switched on and MyRD shows the device connection status as SURVEY ONLY.


Resolution

  1. Make sure the GPS is enabled in the locator. Menu → GPS → RTK → ON
  2. Switch off the locator and Switch it back on and tap on Reconnect button in MyRD app.
  3. Navigate to: Menu → GPS → RTK ->RESET, Switch off the locator and Switch it on and tap on Reconnect button in MyRD app.

Locating device should be always enabled with both the BLE’s RDRX and RTK.

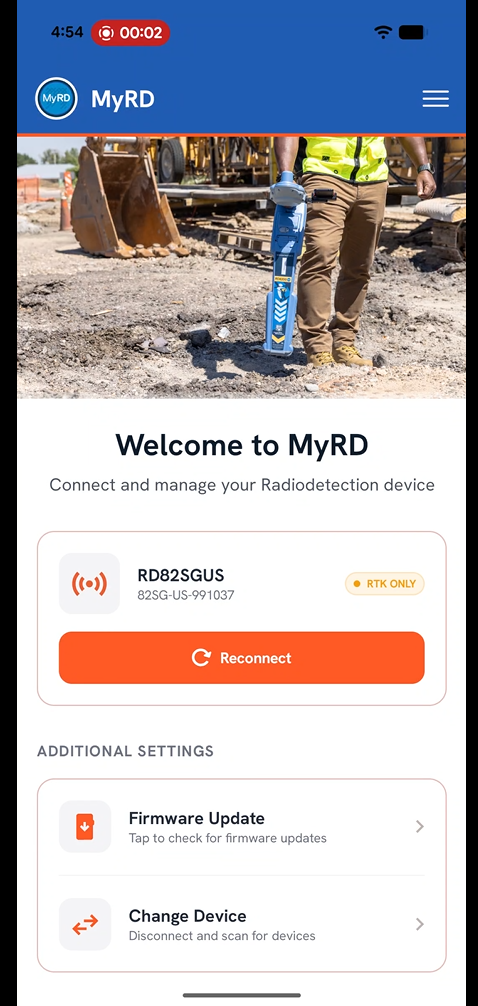

If the device is switched on and MyRD shows the device connection status as RTK ONLY.


Resolution

  1. Make sure SMLOG is enabled in the locator. Menu → SMLOG → COM →  ON
  2. Ensure communications protocol is set correctly. Menu → SMLOG → PROT → ASCII → 1
  3. Switch off the locator and Switch it on and Tap on the Reconnect button in MyRD app.

Locating device should be always enabled with both the BLE’s RDRX and RTK.
