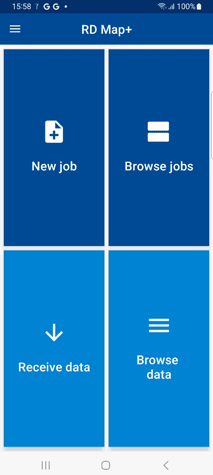

Survey measurements data transferred from a locator into RD Map+ are accessible using the browse data


From this menu you can review all the data stored in the RD Map+ survey measurements data memory and which is not associated to a survey.

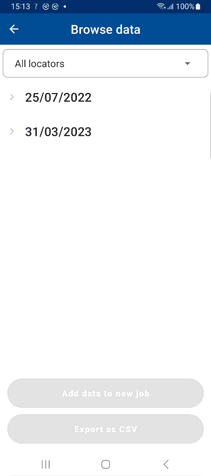

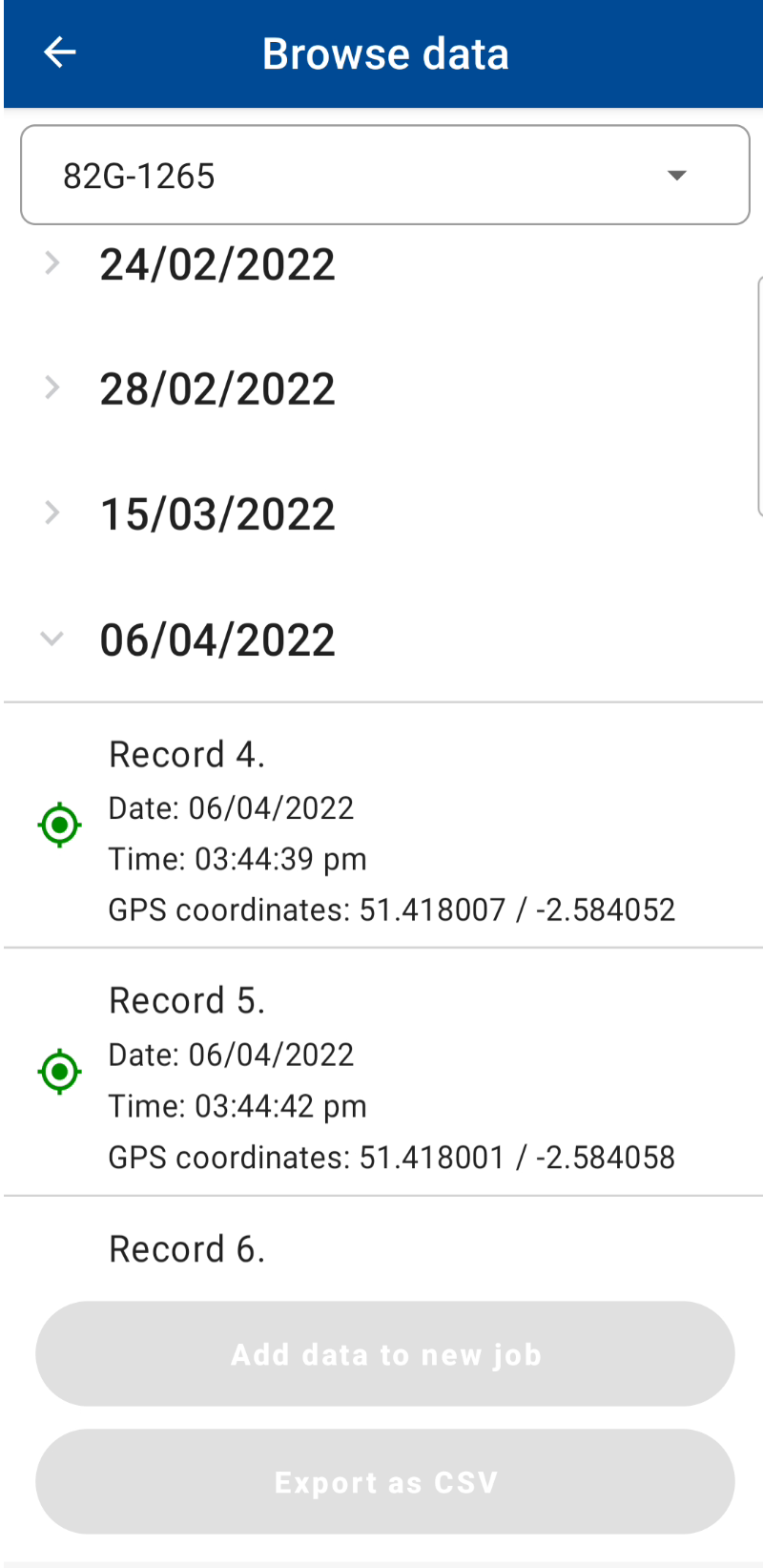

The data is organised by ascending date. Once a date is selected, the Browse data screen will list all the measurements taken ordered by ascending time.

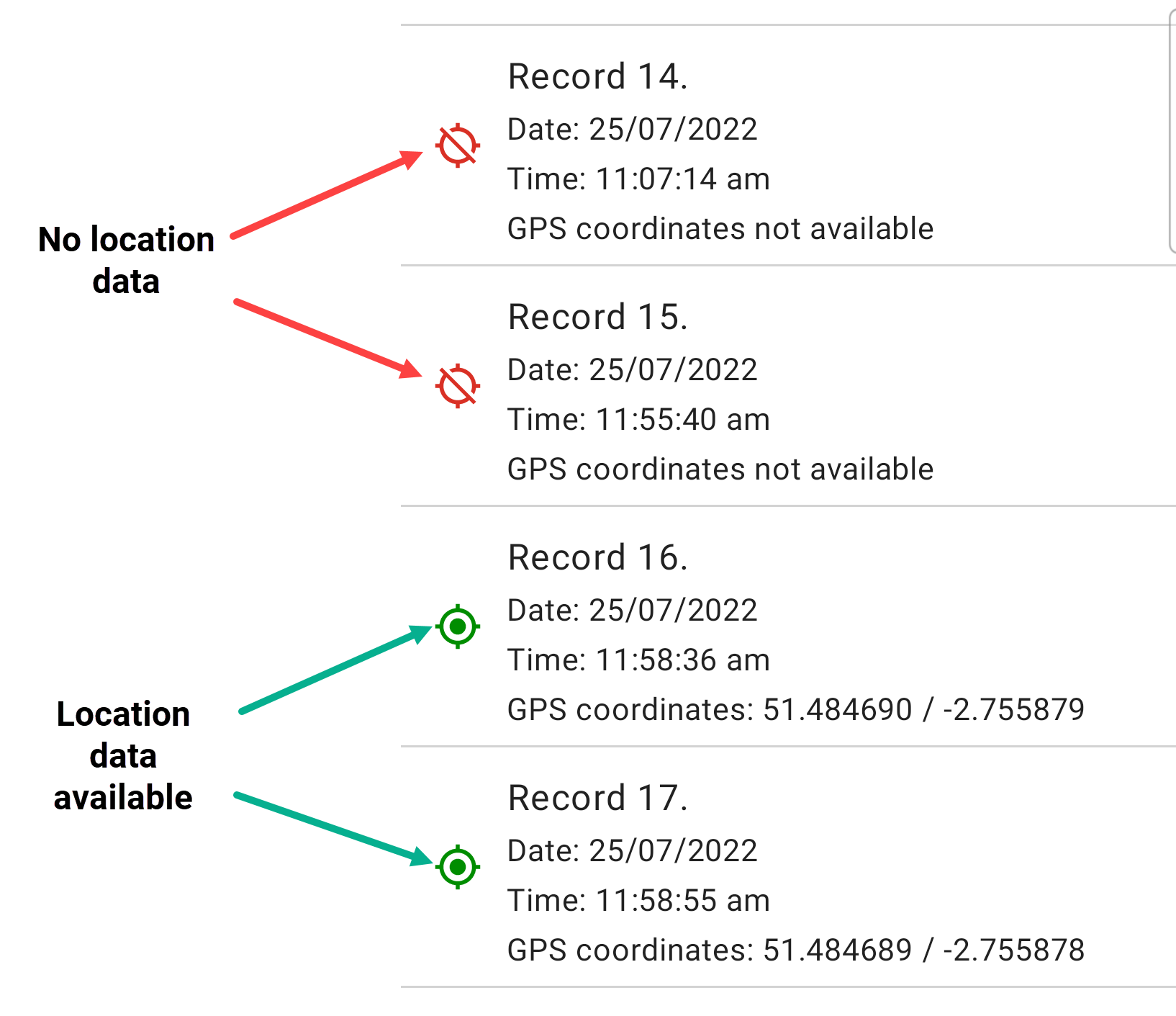

A Green or Red  location data icon will identify if location data is available for each survey measurements record.

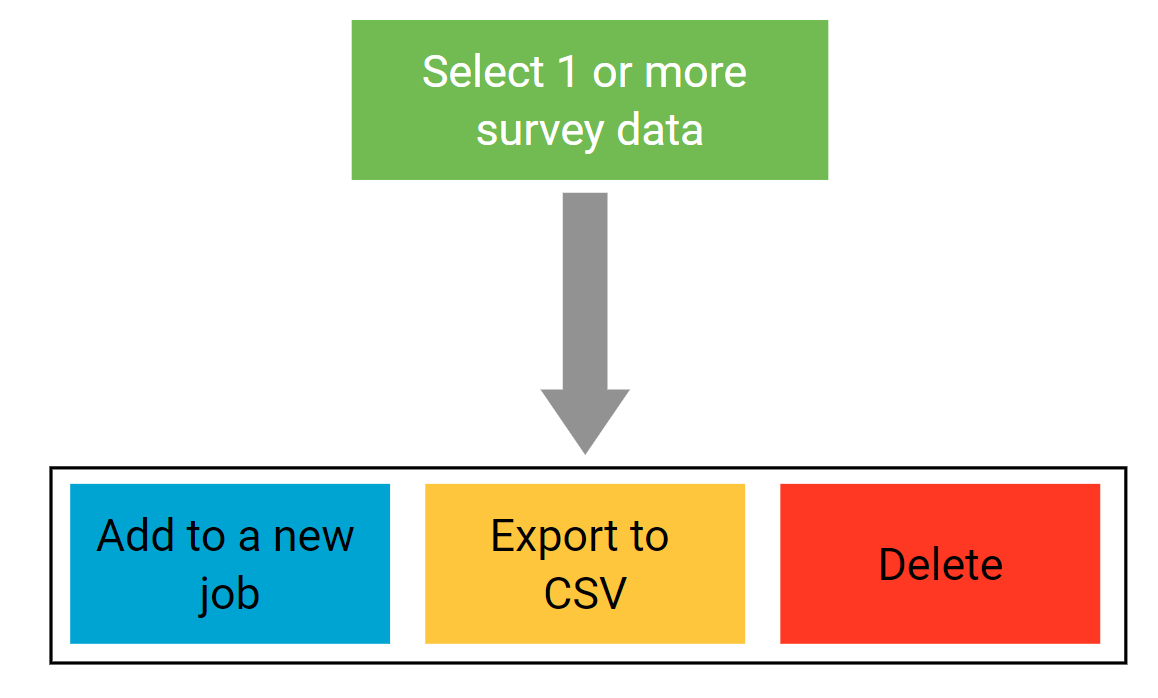

You can select any survey measurements records to associate them to a new job, export them as CSV file or just delete them.



Select one or more survey measurements



  1. In the Browse data screen navigate to the survey measurement(s) to select
  2. Click on the survey measurement  to select ( a green check symbol appears mceclip2.png ) or deselect it
  3. If required select further measurements individually or use the select all button   on the top bar. This will select all measurements displayed on the screen
  4. You can deselect everything by press the X button to the top bar right corner



Add the selected measurements to a new job

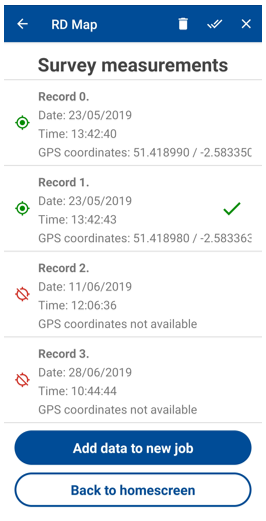

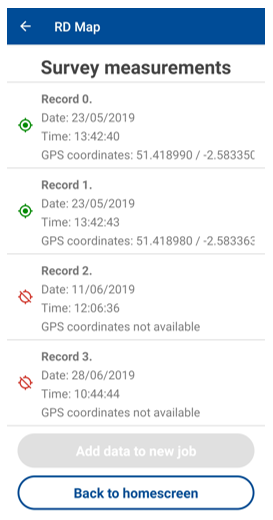

The survey measurements browser shows all survey measurements transferred from a locator, organized by locator serial number and sorted oldest to newest

Survey measurements records with position information are identified by the symbol


while records without position information are identified by:the symbol




Creating a new job

To create a new job:



  1. Select the survey measurements with position information you want to add to a job

NOTE: Only measurements with position information will be added to the new job.


a green mceclip2.png will appear next to each measurement selected

  1. Select the measurement again if you wish to deselect
  2. Once you have completed your selection press Add data to new job

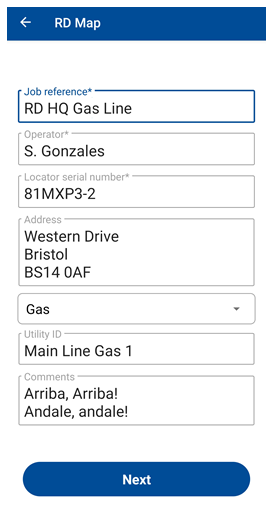

  1. Fill the job details as required
  2. Select Next

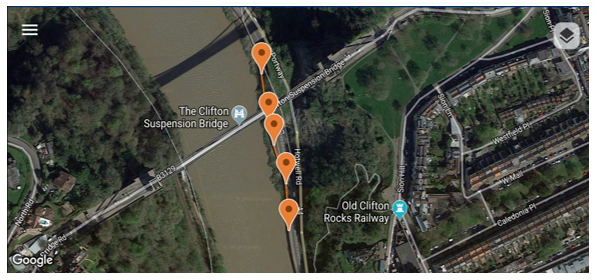

The job’s survey will be created and loaded up




Deleting survey measurements from RD Map+



WARNING! Erasing measurements cannot be undone! Proceed with caution!

To delete survey measurements:

  1. Select the survey measurements you want to delete
  2. Select the measurement again if you wish to deselect
  3. For convenience you can use the Select all or Cancel functions mceclip1.png
  4. Once you have completed your selection press Delete mceclip2.png
  5. Confirm you want to delete the survey measurements

NOTE: RD Map will not delete the survey measurements from the locator.
