C.A.T Scans Overview Screen

Follow

Content:

  1. Overview
  2. Overview Table

Overview

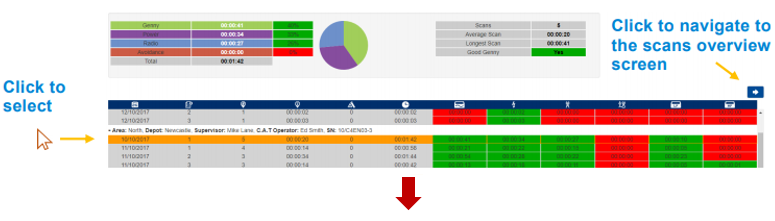

To navigate to the Scans overview screen, you must first select the survey you want to analyse:

click with your mouse on the desired survey and then press the left arrow.

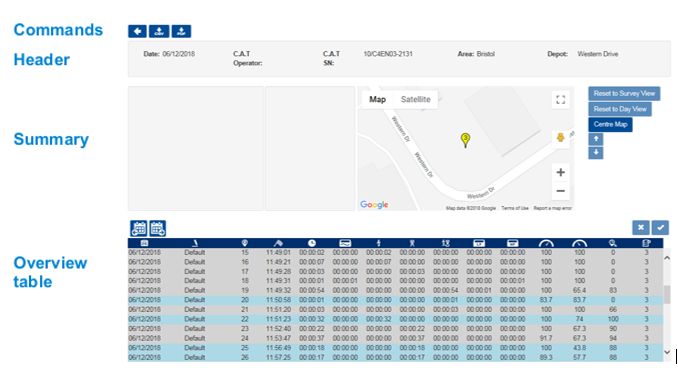

The C.A.T Scans Overview screen has 4 different sections:



Commands

Command Action
Return to previous screen
Export Data as CSV file
Generate a PDF report for a specific Survey



Header

The header section identifies the date shown, the C.A.T operator the locator’s serial number, and Area and Depot (Pro only).



Summary

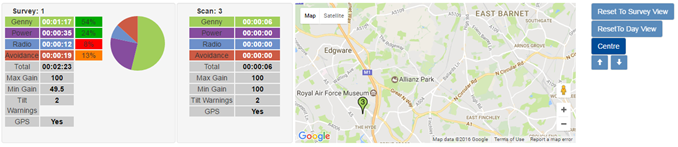

The summary section is divided into 3 different areas; these are (from left to right): Survey, Scan and Map. The map links the survey and/or scan under observation to a specific location.


   Survey                                    Scan                                Map





NOTE: The map function is only available for gC.A.T4 locators if they had a valid GPS position at the time of the scan and/or paired to a mobile device running C.A.T Manager mobile app, where the Location mode is enabled.



Overview Table

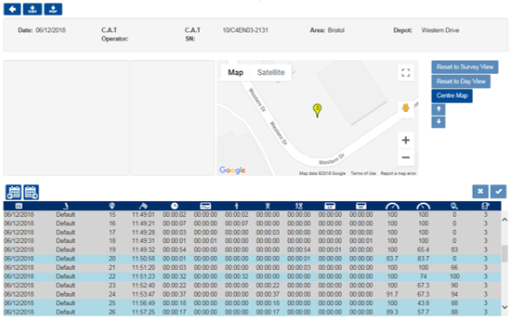

The Overview table provides a detailed view of all surveys conducted and distinct scans associated to them.

Surveys are colour banded, alternating blue and grey. All the scans associated to a specific survey are displayed with the same colour.

This section provides the following commands, used to edit surveys:

Command Action
  mceclip0.png   See previous day (active if available)


See next day (active if available)

  mceclip2.png   Cancel edit operation


Merge Scans

The overview table provides the following information:

Icons Description
  Date

Contract

Contract associated to the survey

Scan Number

Start Time

  Scan Duration"

Genny duration*

How long the C.A.T was used in Genny mode in that day or survey
Power duration*
How long the C.A.T was used in Power mode in that day or survey

Radio duration*
How long the C.A.T was used in Radio mode in that day or survey
Avoidance duration*
How long the C.A.T was used in Avoidance mode in that day or survey
Low Frequency Genny signal duration*
How long the C.A.T has detected a low frequency Genny signal with a strength greater than 10% of full scale on the display - Avoidance and Genny mode only
High Frequency Genny signal duration*
How long the C.A.T has detected a high frequency Genny signal with a strength greater than 10% of full scale on the display - Avoidance and Genny mode only
Maximum sensitivity gain
Minimum sensitivity gain

Scan GPS % duration*

Compared to the overall survey duration
Survey number

* Measured in hh:mm:ss
