Standard Batteries

Follow Avatar Anthony Caplin
Updated : Created :
In this article

NOTE: When installing batteries always observe the correct battery polarity as indicated on the battery tray.



C.A.T4

To replace batteries, open the access cover using a screwdriver or coin. Use two LR20 (D-cell) alkaline batteries.

Genny4

To replace batteries, open the access cover using a screwdriver or coin. Use four LR20 (D-cell) alkaline batteries.

SuperCAT4+

To replace batteries, open the access cover using a screwdriver or coin. Use two LR20 (D-cell) alkaline batteries.

T1

To replace batteries, Unscrew fastener on the rear panel and replace with four LR20 (D cells) alkaline batteries. Observe correct battery polarity as indicated on the top-panel label.




Precision locator

Insert 2 × good quality D-cell batteries. Note the polarity of the cells when inserting them in the battery tray.

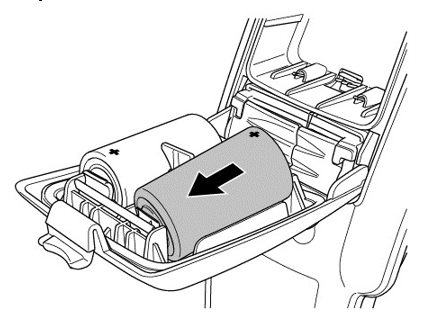

inserting locator batteries

Inserting locator batteries



TX Transmitter:

To fit the D-cell batteries in the transmitter, unlatch the accessory tray. The battery compartment is located underneath the transmitter body. Use the turnkey to unlatch the battery compartment. Insert eight D-Cell Alkaline batteries.

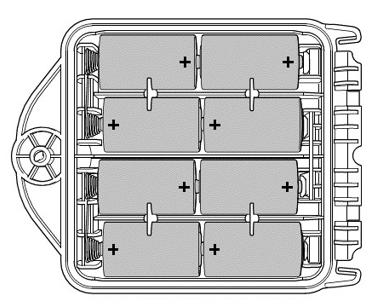

d-cell battery tray

D-cell battery trays





Locator power accessories and spares

2 cells battery tray (2x D Cell / LR20) (2)


10/RX-2DCELL-TRAY



Transmitter power accessories and spares

8 cells battery tray (8x D Cell / LR20)




10/TX-8DCELL-TRAY



D Cell batteries

Alkaline Battery (D-Cell, LR20, MN1300)


10/1DCELL-ALK



REPLACING BATTERIES

Do not mix new and old batteries or different types of batteries, as this may cause them to overheat.







Rechargeable Battery options -->>>
