Rechargeable Battery options



Article Content:

  1. Precision Locator
  2. Cable Avoidance

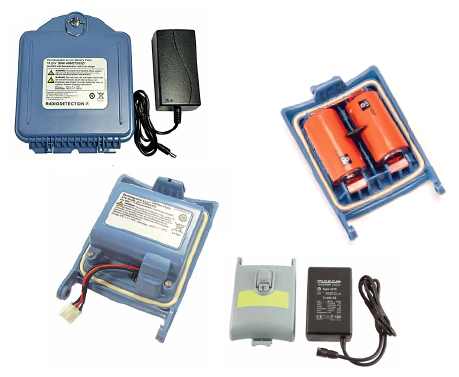

mceclip2.png mceclip1.png mceclip0.png







Precision Locator

Radiodetection precision locators and transmitters support Lithium-Ion, Alkaline or Nickel Metal Hydride batteries.

You should set the Locator and transmitter battery type to match the currently installed type. This is to ensure optimal performance and correct battery level indication.

Lithium-Ion batteries will automatically be detected by the locator.

  1. Li-Ion Locator power accessories and spares
  2. NiMH Locator power accessories and spares
  3. Locator D-Cell power accessories and spares
  4. Transmitter power accessories and spares
  5. Transmitter D-Cell power accessories and spares












Li-Ion Locator power accessories and spares

Li-Ion rechargeable battery pack with mains charger (includes power lead) (1)


10/RX-MBATPACK-LION-K-XX

Li-Ion rechargeable battery pack with auto charger (1)


10/RX-ABATPACK-LION-K

Li-Ion rechargeable battery pack with mains and automotive charger (includes power lead) (1)


10/RX-MABATPACK-LION-K-XX

Li-Ion automotive charger (1) mceclip0.png 10/RX-ACHARGER-LION
Li-Ion mains charger (includes power lead)(1) mceclip1.png 10/RX-MCHARGER-LION-XX
Li-Ion rechargeable battery pack (4 pins)(no charger)(1) mceclip2.png 10/RX-BATPACK-LION

(1) Compatible with RD7200/RD8200, RD8100/RD8100 and Marker (MRX) Locators

(2) Compatible with RD7200/RD8200, RD7100/RD8100 and RD7000+/RD8000 Locators

Replace XX with AU, EU, UK or US

NOTE: Li-Ion charging accessories have 4 pin connectors, NiMH has 3 pin connectors.

To recharge the locator battery pack, connect the battery charger to the DC input connector on the front of the battery pack.

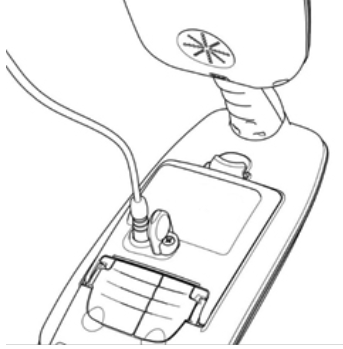

charging the locator.png

Charging the locator Li-ion battery pack



NiMH Locator power accessories and spares

NiMH rechargeable battery pack (3 pins)(no charger)(2) mceclip3.png 10/RX-BATPACK-NIMH
NiMH mains charger (includes power lead)(2) mceclip4.png 10/RX-MCHARGER-NIMH-XX
NiMH automotive charger (2) mceclip5.png 10/RX-ACHARGER-NIMH
NiMH rechargeable battery pack with mains charger (includes power lead) (2) mceclip6.png 10/RX-MBATPACK-NIMH-K-XX

(1) Compatible with RD7200/RD8200, RD8100/RD8100 and Marker (MRX) Locators

(2) Compatible with RD7200/RD8200, RD7100/RD8100 and RD7000+/RD8000 Locators

Replace XX with AU, EU, UK or US

NOTE: Li-Ion charging accessories have 4 pin connectors, NiMH has 3 pin connectors.





Locator D-Cell power accessories and spares

3 cells battery tray (3 x D-cell/LR20)(1) Marker locator only mceclip17.png 10/RX-MARKER-3DCELL-TRAY
2 cells battery tray (2 x D-cell/LR20)(2)  mceclip18.png 10/RX-2DCELL-TRAY
Set of 2 rechargeable NiMH batteries (D-cell, LR20,MN1300) mceclip16.png 10/2DCELL-R-NIMH





Insert 2 × good quality D-cell batteries. Note the polarity of the cells when inserting them in the battery tray.

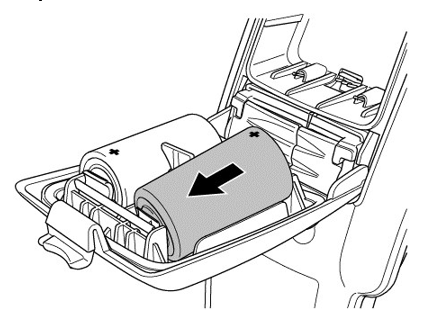

inserting locator batteries

Inserting locator batteries



(1) Compatible with RD7200/RD8200, RD8100/RD8100 and Marker (MRX) Locators

(2) Compatible with RD7200/RD8200, RD7100/RD8100 and RD7000+/RD8000 Locators





Transmitter power accessories and spares

Mains PSU (includes power lead)


10/TX-MPSU-XX

12V Car Power Lead with Isolation Transformer


10/TX-APSU

Li-Ion rechargeable battery pack with mains charger (includes power lead) (3)


10/TX-MBATPACK-LION-K-XX

Li-Ion rechargeable battery pack with automotive charger (3)


10/TX-ABATPACK-LION-K

Li-Ion rechargeable battery pack with mains and automotive charger (includes power lead) (3)


10/TX-MABATPACK-LION-K-XX

Li-Ion automotive charger (3)


10/TX-ACHARGER-LION

Li-Ion mains charger (includes power lead) (3)


10/TX-MCHARGER-LION-XX

Li-Ion rechargeable battery pack (no charger) (3)


10/TX-BATPACK-LION



(3) Li-Ion rechargeable packs cannot be charged in the transmitter

Replace XX with AU, EU, UK or US

To recharge the battery pack, remove the pack from the transmitter and connect the transmitter battery charger.

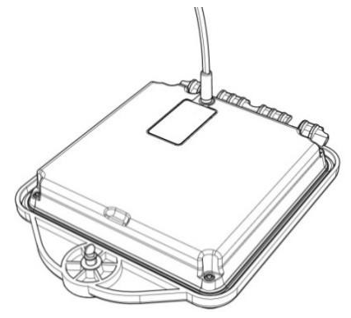

charging the transmitter

Charging the transmitter Li-ion battery pack

For more information about recharging batteries refer to the instructions that came with your charger.







Transmitter D-Cell power accessories and spares

8 cells battery tray (8 x D-cell/LR20) mceclip15.png 10/TX-8DCELL-TRAY
Set of 2 rechargeable NiMH batteries (D-cell, LR20,MN1300) mceclip16.png 10/2DCELL-R-NIMH





To fit the D-cell batteries in the transmitter, unlatch the accessory tray. The battery compartment is located underneath the transmitter body. Use the turnkey to unlatch the battery compartment. Insert eight D-Cell NiMH batteries.

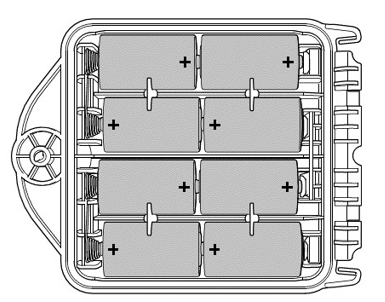

d-cell battery tray

D-cell TX battery trays







Cable Avoidance

Radiodetection Cable Avoidance Tools support Alkaline or Nickel Metal Hydride batteries.

NOTE: When installing batteries always observe the correct battery polarity as indicated on the battery tray.



C.A.T4

To replace batteries, open the access cover using a screwdriver or coin. Use two LR20 (D-cell) NiMH batteries.

Genny4

To replace batteries, open the access cover using a screwdriver or coin. Use four LR20 (D-cell) NiMH batteries.



SuperCAT4+

To replace batteries, open the access cover using a screwdriver or coin. Use two LR20 (D-cell) NiMH rechargeable batteries.







Charging the lithium ion packs

warning icon.pngWARNING! Only use charging equipment provided by Radiodetection. The use of alternative chargers may cause a safety hazard and/or reduce the life of the battery.

CAUTION: Do not let your battery completely discharge as this may reduce its life or damage it permanently. If you are not using your equipment for a long period do charge them at least once a month.

warning icon.pngWARNING! Batteries can get hot after prolonged use at full output power. Take care while replacing or handling batteries.

warning icon.pngWARNING! Do not tamper with, or attempt to disassemble the battery packs.

CAUTION: If battery failure is suspected or if the battery shows any sign of discoloration / physical damage return the entire unit to an authorized repair center for investigation and repair. Local, national or IATA transport regulations may restrict the shipment of faulty batteries. Check with your courier for restrictions and best practice guidelines. Your local Radiodetection representative will be able to direct you to our authorized repair centers.

You can re-charge your batteries using the Radiodetection mains or automotive chargers.

NOTE: The charging temperature range is 0 to 45 °C, 32 to 113°F. Do not attempt to recharge your batteries outside this temperature range

warning icon.pngWARNING! do not heat the rechargeable battery pack above 60°C (140°F) as this will damage the battery's thermal fuses.

warning icon.png WARNING! Do not crush, do not heat or incinerate, do not short circuit, do not dismantle, do not immerse in any liquid. The cells inside may vent or rupture. Observe charging instructions.




Disposal


This symbol on the product, accessories or literature indicates that the product and its electronic accessories (e.g. charger, headset, USB cable) must not be treated as domestic waste, but must be disposed of professionally. It is your responsibility to dispose of your waste equipment by handing it over to a designated collection point for the recycling of waste electrical and electronic equipment. The separate collection and recycling of your waste equipment at the time of disposal will help to conserve natural resources and ensure that it is recycled in a manner that protects human health and the environment. For more information about where you can drop off your waste equipment for recycling, please contact your local city office, your disposal service or product supplier.
Please dispose of this device in a manner appropriate to the relevant legal requirements at the end of its product life
Batteries should be disposed of in accordance with your company’s work practice, and / or the relevant laws or guidelines in your country or municipality.
